Configure HikVision (DS-2CD1383G2-LIUF) 8MP Network Cameras for Cloud Recording, Backup, Monitoring and Playback
Contents
Step 1: Connect the camera to the network and find its IP address
Step 2. Access the Camera's Web-based Configuration Tool
Step 3. Configure the video profile
Step 4. Configure FTP Settings
Step 5. Configure Motion Detection and Snapshots
5.1 Configure Motion Detection
5.2 Configure Image Snapshot Settings
Step 6. NVR Configuration and CameraFTP Viewer
Hikvision is one of the largest security camera manufacturers. They have many camera/DVR models.
Many of their cameras are designed for out-door use. They support image/video resolutions of
2048x1536, 1920x1080, 1280x720 and up to 8MP (4K) resolutions.
Most of their cameras and NVRs can upload or back up image snapshots to a cloud FTP server.
It is perfect for Image Recording or Timelapse Recording.
Most of Hikvision cameras / NVRs are compatible with CameraFTP VSS.
CameraFTP VSS software can use a PC as a powerful CCTV NVR system.
It can connect to Hikvision IP camera/NVR's video streams, display the live videos on your PC screen while
storing video footage to the cloud or local drive.
 |
 |
 |
| Hikvision_DS-2CD1383G2-LIUF, 8MP PoE network camera |
Hikvision NVR with network cameras |
Hikvision_DS-2CD2085G1-I, 8MP network camera |
Basic camera information
| Video / image resolution |
3MP, 4MP, 6MP, 8MP (4K), 1920x1080 and 1280x720 dependent on the camera model |
| Audio recording |
Yes |
| Image upload frequency |
1 image/s - 1 image/7 days |
| Video frame rate |
12.5fps |
| Night-vision |
Up to 100 feet for outdoor models |
| Image / timelapse recording |
Yes. 1 image/s - 1 images/7 days |
| Video clip recording |
Not Supported (Support with CameraFTP VSS) |
| Motion detection |
Supported |
| Continuous recording |
Supported |
| Supported video format |
N/A (.mp4 with CameraFTP VSS) |
| Connection type |
Ethernet cable |
| PoE (Power on Ethernet) |
Yes |
| Indoor / outdoor |
Outdoor |
| Lowest pricing (as of 6/1/2024) |
$110 (Hikvision DS-2CD1383G2-LIUF PoE Outdoor camera) |
Disclaimer:
This document is not designed to
replace the product manual from the manufacturer. The information provided is
based on our knowledge of the model Hikvision DS-2CD1383G2-LIUF PoE outdoor
network camera with the original firmware (Before June 2024).
If your firmware is newer than June 2024, please read the other Hikvision Setup Guide document.
Hikvision has very many camera & NVR models, incl.:
AcuSense Series, ColorVu Series,
DeepinView Series,
Panoramic Series,
Performance Series,
Wireless Series,
Solar-Powered Series,
Value Express Series,
IP PTZ Cameras,
TandemVu Pro Series,
Ultra Series,
Pro Series,
Value Series,
Special Series,
Explosion-Proof and Anti-Corrosion Series,
Explosion-Proof Series,
Anti-Corrosion Series and Network Video Recorders.
We believe the setup interface and steps are similar for all Hikvision network cameras and NVRs.
Anyway, the information in this document may not be accurate or up-to-date. We have not fully tested the cameras.
Users shall contact the manufacturer
for all camera-related issues and contact us only for CameraFTP-related (cloud
service / FTP) issues.
Please follow the manufacturer's instructions to connect the camera to the network. Many Hikvision outdoor models support PoE.
So you need a PoE switch, or a compatible power adaptor.
You will need to use the manufacturer's software to find the camera's IP address.
After that, you need to launch a browser to access the camera's configuration website.
You might need to download the Hikvision mobile app for the initial configuration. The camera requires you to
set a password for the default user (username: admin). After log in to the camera from a browser,
you will be asked to install the plugin for live viewing the camera.
If you connected the camera to the network, but cannot find the camera's IP address, you can use a PC to find it. The PC must
be connected to the same network (LAN). You can install CameraFTP VSS software on the PC, then use it to find the camera's IP address.
You will click Add to add a camera in VSS, then scan the local network to find IP cameras in the local network. Please see the screenshots below:
VSS can find the IP address of the camera; however, it may not be able to find the camera brand/model. You need to check each IP address
manually. In the above screenshot, Hikvision camera's IP address is 192.168.1.64,
which is the default IP address if your local network's subnet is 192.168.1.*.
Please note if you don't want to use the PC as a virtual NVR, then don't click Next in VSS software.
Now you have the camera's IP address. The first step is to open a web browser to access the camera's web interface.

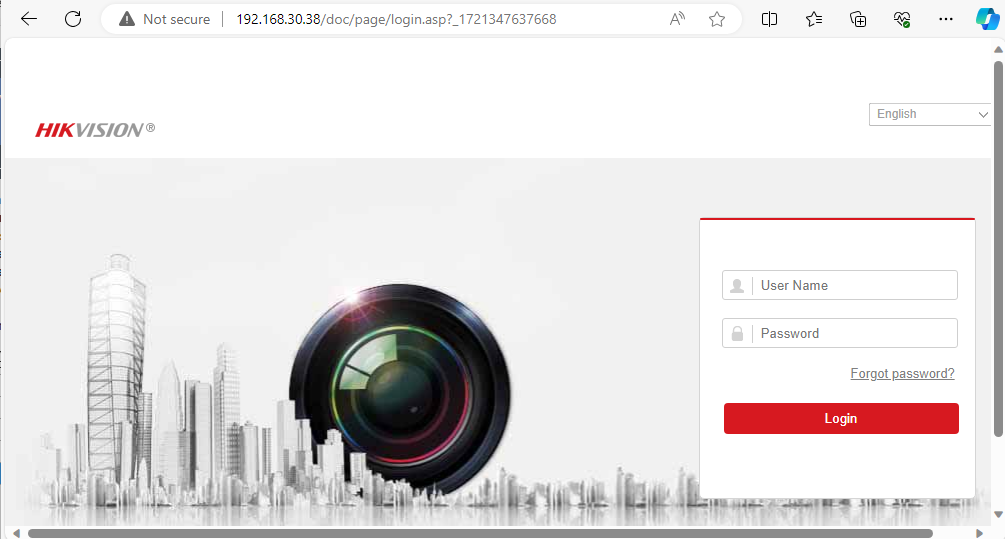

In the browser address bar, type in http://Camera-IPAddress/, you will see the following login screen: (If you are not sure which one is the Hikvision camera's IP address, you will need to
try it one by one)

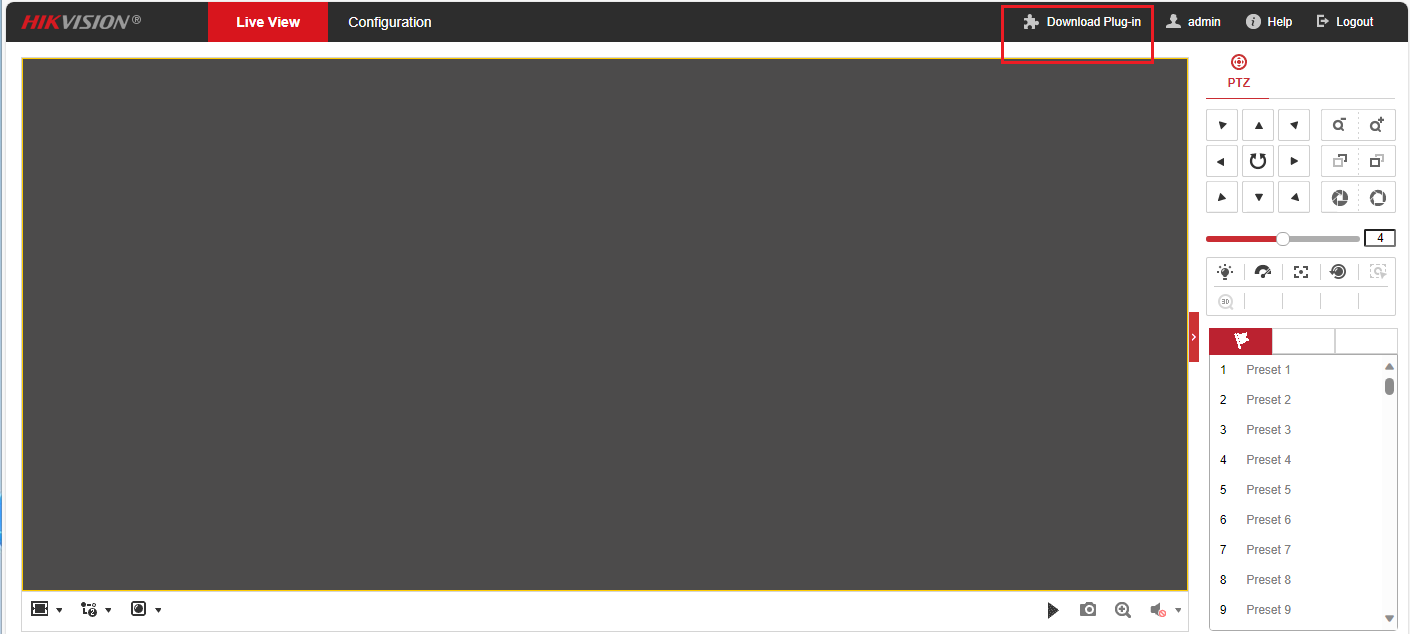

Log in with the camera device's username and password, it will display:
Click Download Plug-in, then finish downloading and installing the plug-in. After that, it will display the camera live view as follows:

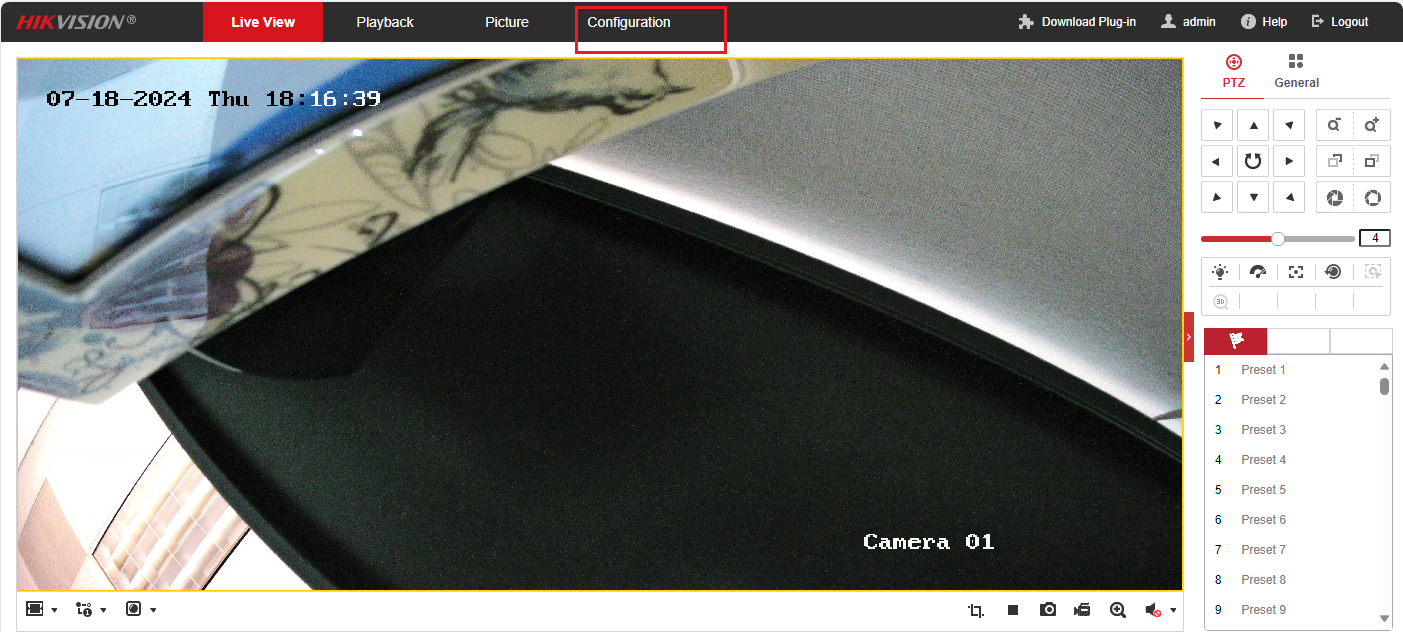

You can then click Configuration to config the camera.

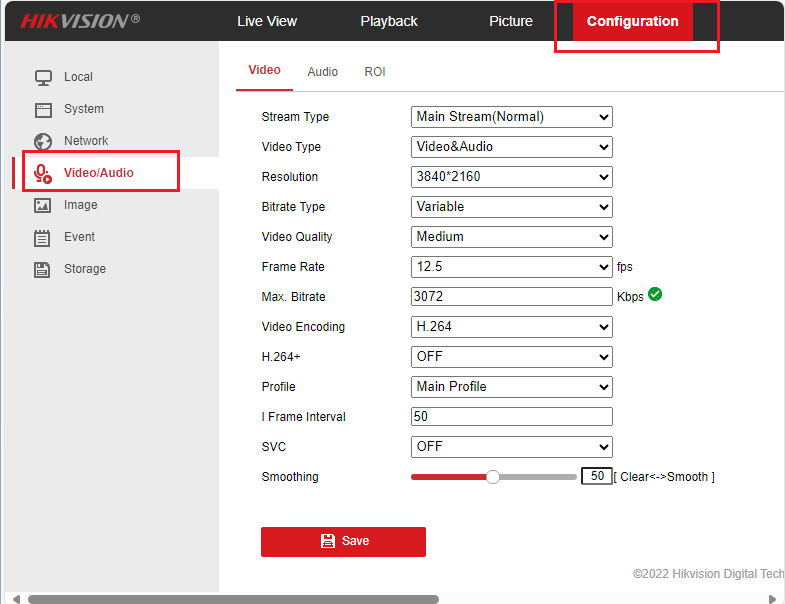

Click Configuration, then click Video/Audio, you can access the video profile settings screen as shown below:
The parameters to enter are dependent on your subscription plan (camera license).
If the camera uploads footage directly without using a PC, then your subscription plan
should not be lower than 1280x720. Please note the image resolution is the same as the Main Stream video resolution.
If you upgrade to the latest version firmware (June 2024), it supports 640x480 images (based on your Sub-Stream video resolution).
This camera cannot directly upload video clips, so the video frame rate is not relevant to cloud image recording.
(If you plan to use CameraFTP VSS for video recording, then the video parameters cannot be lower than your video subscription plan's parameters.
CameraFTP VSS will transcode the video stream and upload video or image based on your subscription plan.)
Similarly, the Max Bit-rate is not relevant to image uploading. (If you use CameraFTP VSS for video recording, then the default
bit rate is for local network only; the upload bit rate is dependent on your service plan.)
For Image/Timelapse Recording, the bit rate is mainly determined by your image upload frequency and image resolution.
At high resolution and upload frequency, image recording may require much higher upload bandwidth than video recording.
Please make sure your Internet connection has enough upload bandwidth.
Before configuring the camera's FTP settings, we need to find the FTP information first. Please log in to www.cameraftp.com,
then go to My Cameras page, click Add to add a new camera (folder). It will display the following page:
Enter the camera (folder) name, description and brand/model with a specific subscription or free plan, then click Save Cameras.
The new camera will be created:
Click the Settings icon as shown in the screenshot, it will display the Camera Properties page.
You can find the FTP information that needs to be configured to your camera (or NVR). For the FTP server name,
it is recommended to enter "ftp.cameraftp.com". If it does not work, you can use the IP address 66.220.9.45. (or you can
check your DNS settings, or configure the camera to use DHCP and reboot the camera, then find the new IP address).
For the FTP transfer mode, please select Passive (if such option is available). For the FTP password, we recommend using
the FTP password that is associated with the camera license (or free license). This way, each camera uses a different FTP password.
You can also use your CameraFTP account password. If so, you must configure the FTP folder/directory name.
Now, let's configure the FTP information in your camera device. Please note CameraFTP.com cannot automatically configure your device.
We cannot connect to or control your device remotely. So please go back to the camera device's configuration interface.

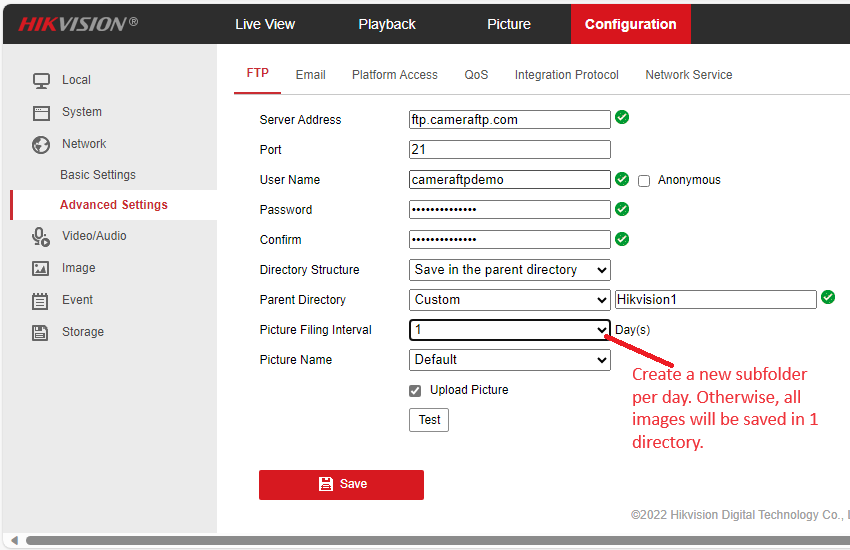

Click Configuration -> Advanced Settings -> FTP, you will
see the following screen:
You need to set the following parameters:
- Server address: ftp.cameraftp.com, or 66.220.9.45
- Port: 21
- Username, password and confirm password:
The username on CameraFTP.com; you can use your CameraFTP account password,
but it is recommended using the FTP password associated with your camera license (or free license).
You will need to log in to www.cameraftp.com and add a camera (folder) first.
- Directory structure: Save in the parent directory
- Parent Directory:
Select Custom, and then enter the camera (folder) name.
- Picture Filing Interval:
Select 1. It means the camera will create a new subfolder and save images to it every day.
- Upload Picture:
Please check the checkbox for uploading pictures to the FTP server. (Note: you must finish all steps)
Please click Save to save the changes. Then click Test to check if it works. If it does not work, please verify
the information, and check if the camera can connect to the Internet. Please also verify that your router and ISP do not
block FTP. You can test it with any popular FTP client program, such as FileZilla.
If it works fine, then it means the camera can upload footage to CameraFTP cloud. However, you still need to configure other steps for the camera
to actually upload footage to CameraFTP.
If you ordered a motion triggered recording plan, then

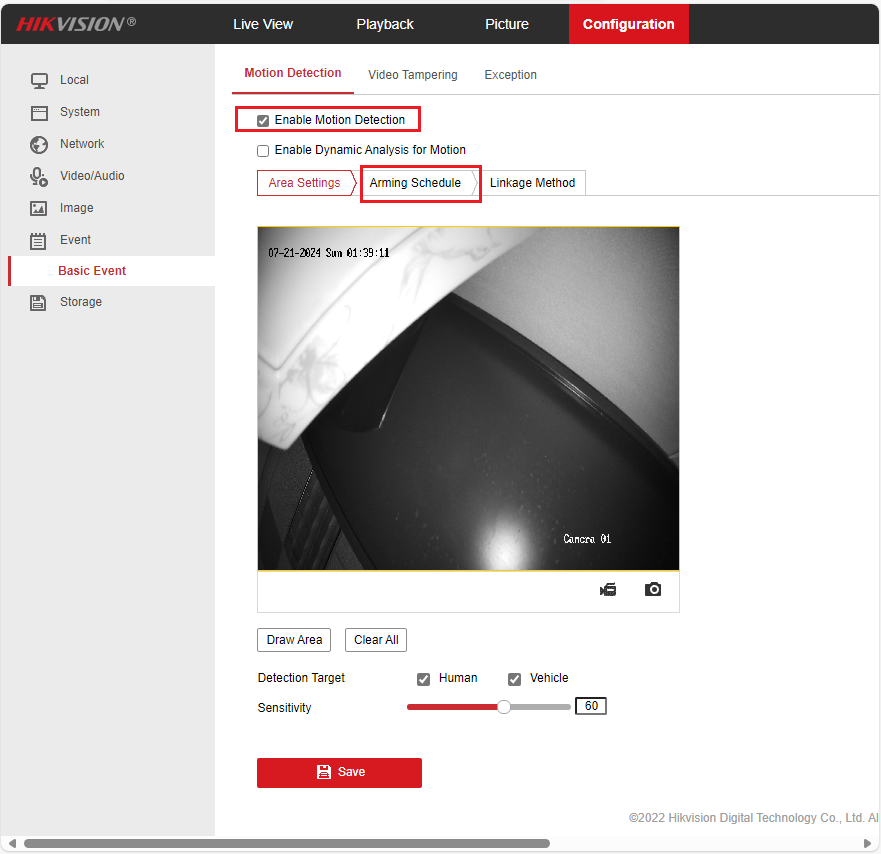

you must configure motion detection with your camera. Click Configuration -> Event -> Basic Event -> Motion Detection.
You will see the screen as shown below:
- Enable Motion Detection: Check the checkbox
You can set motion detection settings based on your needs,
e.g. draw a motion detection area in Area Settings; set the sensitivity level, etc. It is a camera-specific feature.

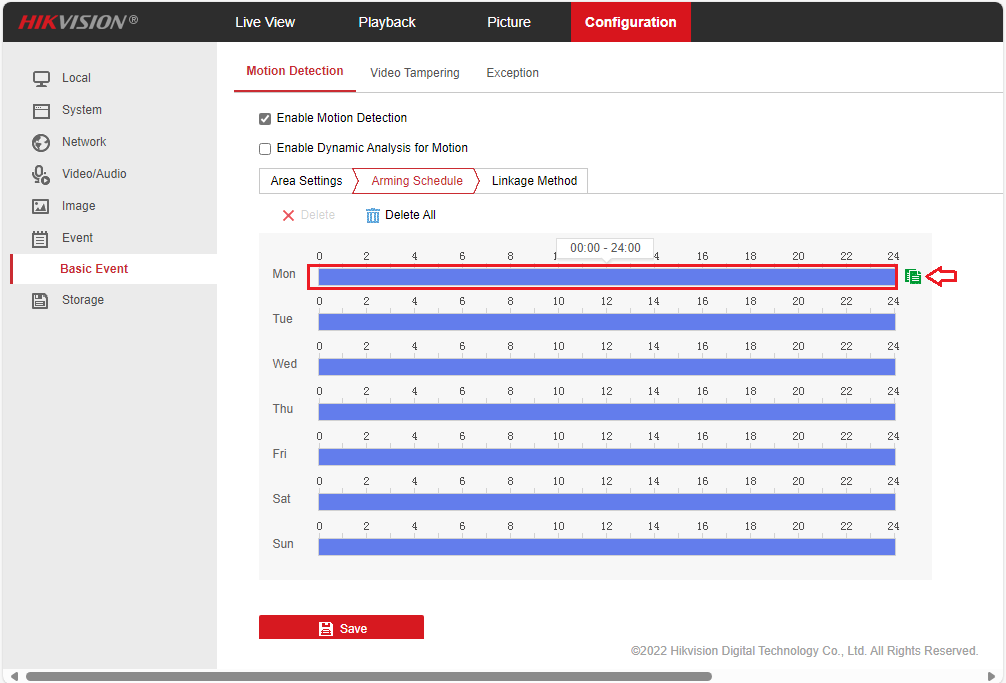

You need to set Motion Detection Arming Schedule. Click "Arming Schedule", you will see the screen as follows:
Usually, you will select all time as shown in the above screenshot. You do this by selecting all time on Monday, then
move the mouse to the end of the blue bar, then you can copy the information to other days of the week. Click Save to save the info.

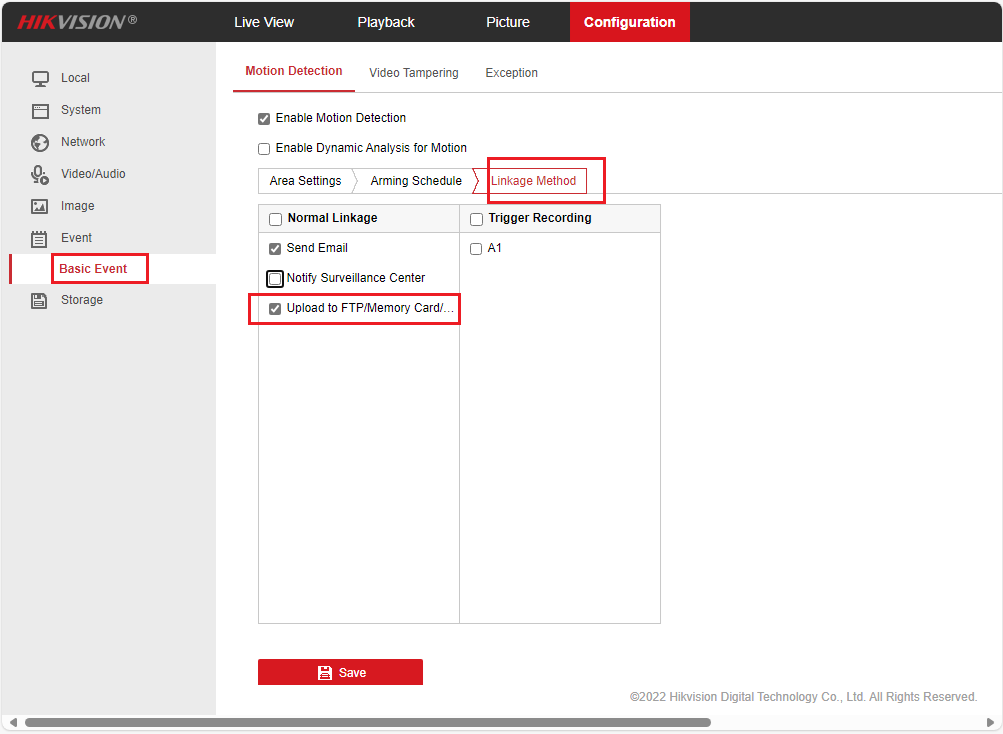

Lastly, you need to configure the Linkage Method, which means what actions to take if a motion event is detected. Click "Linkage Method", you will
see the screen as shown below:
Check the checkbox for "Upload to FTP...".
(If for some rare reasons that FTP does not work, you can check "Send Email" to upload images using SMTP).
This camera can only upload image snapshots and not video
clips. CameraFTP has viewer apps that can play the recorded image
snapshots just like video. If you ordered a video-recording plan, you need to:
(1) Order a new Image/Timelapse Recording plan and cancel the old video plan;
or
(2) Use CameraFTP VSS on a PC.
If you use VSS, then please do not configure FTP in the camera. VSS can upload video clips to CameraFTP.
The image resolution is set in the Video Profile Settings (The resolution of the main stream video).
If you ordered a Continuous Image Recording or Timelapse Recording plan, you

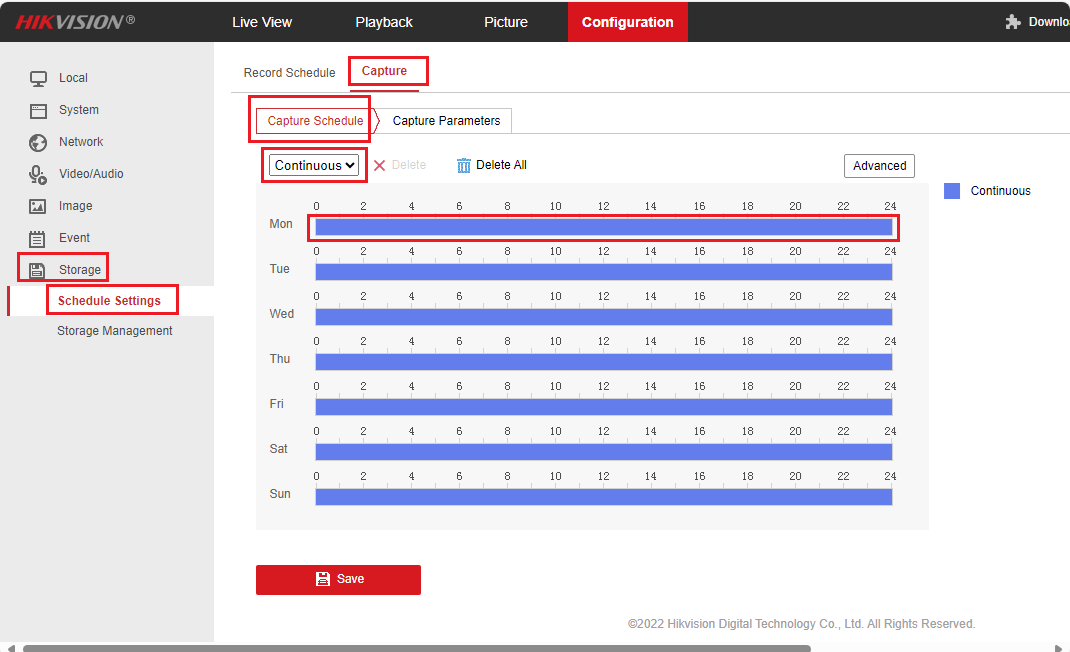

need to set the capture schedule. Click Configuration -> Storage -> Schedule Settings -> Capture -> Capture Schedule. It will display
the screen as shown below:
Usually you want to select all time. You can select all time for Monday, then move the mouse to the end of the blue bar, then copy the information
to other days of the week. Click Save.
Capture Parameters for Continuous or Motion-triggered Image Recording:

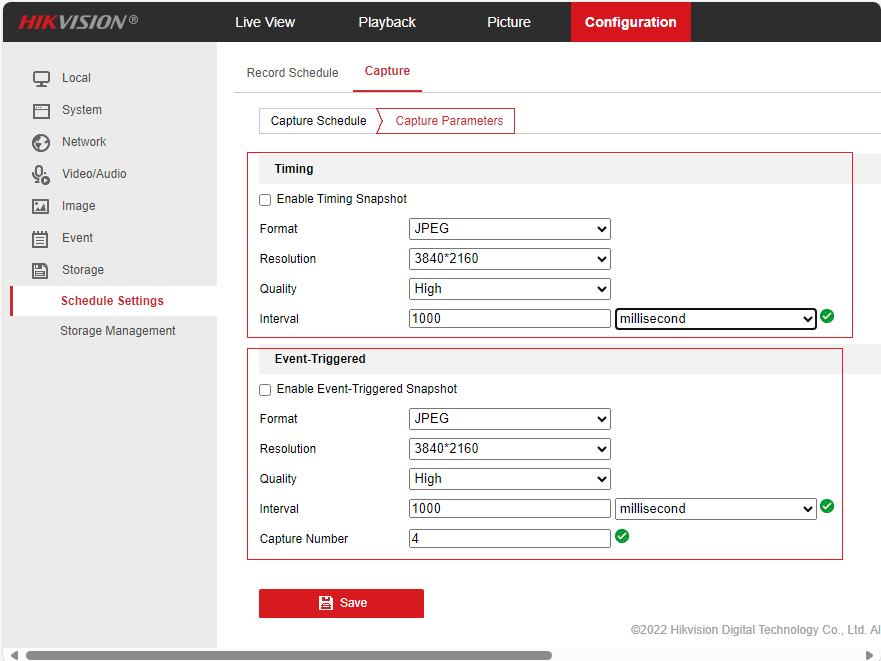

Click Configuration -> Storage -> Schedule Settings -> Capture -> Capture Parameters, you will see the following screen:
If you ordered a Continuous Image Recording / Timelapse Recording plan, then configure the Timing section only.
- Enable Timing snapshot: Check it
- Format: JPEG
- Resolution: 1280x720 (based on your CameraFTP service plan)
- Quality: Medium
- Interval: x seconds (based on your subscription plan)
If you ordered a Motion-triggered Recording plan, then only configure the Event-Triggered section.
Click Save to save the settings.
You are all done. To make sure it works fine, you can reboot the camera and check if it still works. If you need to make
changes, you can repeat the above steps and make changes as needed. It is very important to remember the camera device's password.
If you need to configure a Hikvision NVR/DVR, the steps are similar. Initially, you can treat the NVR/DVR as a single IP camera.
You just need to make sure the cameras' recording parameters are based on your service plan, and order enough camera licenses.
The NVR will upload all images to one camera folder. Please send an email to CameraFTP support. We will configure the server to
automatically create multiple camera folders for the NVR.
After your camera is setup, you can visit www.cameraftp.com to monitor or
play back your recorded footage from anywhere. You can also download
CameraFTP Viewer App for iOS, Android and Windows (and Mac).
Note: Hikvision cameras cannot upload video clips to FTP server directly.
To upload video clips, you can use CameraFTP VSS on a PC. These cameras are compatible with VSS-based Live View,
Cloud Recording and Local Recording.
If you use VSS for video recording, it is important to set the correct video frame rate and bit rate in Video Profile Settings.
Cannot get it to work? Please read our
Trouble-shooting Guide.
